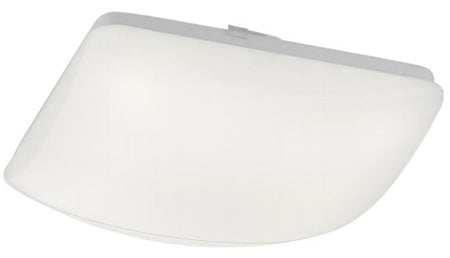

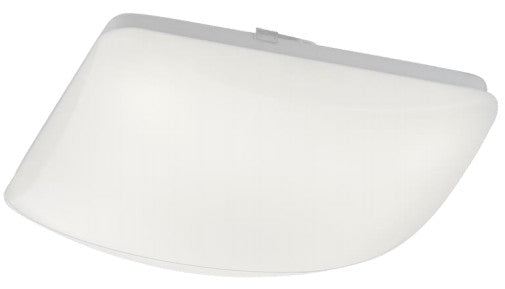

The LED square (LEDR) ceiling series is designed for residential, light commercial and other applications. High-quality luminaire utilizes the latest LED technology for optimal performance and maximized energy efficiency. High-CRI LEDs are standard, and dimming is available with many popular wall dimmers. The finely-textured lens is molded from acrylic, and provides an even, uniform light distribution.
Available in 2700k (warm white) or 4000k (neutral white) color temperature.
Long-life LEDs provide at least 76,000 hours of operation with at least 70% of initial lumen output (L70).

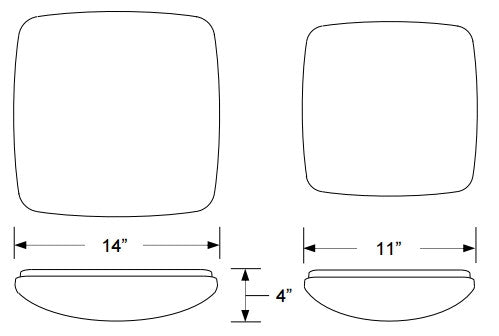

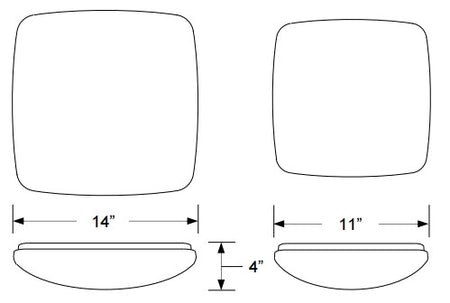

11” model delivers lumen output equivalent to one 75 watt incandescent lamp, but uses only 14 watts.
14” model delivers lumen output equivalent to two 60 watt incandescent lamps, but uses only 25 watts.
High-efficiency, non-glare lens provides visual comfort and uniform illumination without pixelation.
Input voltage: AC120V, 60Hz.
Compatible with many popular wallbox dimmers.
Power factor > 0.99.
Total harmonic distortion < 20%.
Color rendering index > 80.
Sturdy steel body construction. Lens material is acrylic.
Easy installation in new construction or retrofit.
Color Temperature: 2700k, 4000k
CRI 1: >80
Luminaire Lumens: 1,214, 1,320, 1,685, 1,803
Luminaire Watts: 14, 25
Lumens Per Watt: 84, 91, 70, 75
Input Voltage: 120 (60Hz)
Input Current (A):
120V: 0.12, 0.20
240V: 0.06 , 0.10
277V : 0.05 , 0.09
Power Factor: >99%
Warranty & Listings:
Culus listed for damp and dry locations in ambient temperatures ranging from -20° C to 35° C / -4° F to 95° F.
Energy Star qualified.
Complies with FCC Part 15.
Driver is protected from line transients (2.5 kV).
