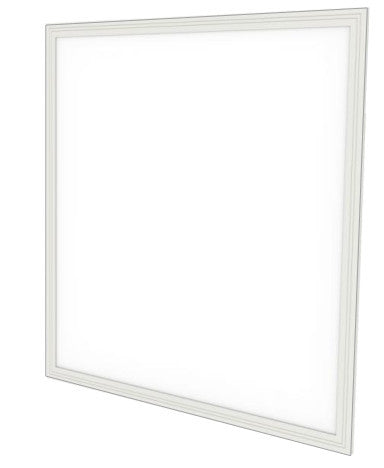

32W - 2X2 LED Flat Panel - DIM - 4000k or 5000k - 120/277v - DLC Premium

In stock
SKU: LEDPNL2X2-32W-4KMV-DLCPRM-BES
Regular price $55.00
Color Temperature

The premium-performance, ultra-thin, edge-lit LED panel series offers industry-leading lumens per watt (LPW), and is DLC Premium listed. This fixture is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.



Emergency back up available. Field install only.



FEATURES:

  • Available in 4000k (coolw white) and 5000k (bright white) color temperatures.
  • Long-life LEDs provide 81,000 hours of operation with at least 70% of initial lumen output (L70).
  • Provides 4,003 luminaire lumens (124 lumens per watt, LPW) at 3000k, 4,081 luminaire lumens (127 LPW) at 4000k, and 4,111 luminaire lumens (129 LPW) at 5000k.
  • Uniform illumination with no visible LED pixilation.
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming capability is standard.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Color rendering index > 80.
  • Aluminum housing.
  • PMMA (polymethyl methacrylate) acrylic lens with light guide panels for optimal light distribution and efficiency.
  • Easy installation in new construction or retrofit.
  • Standard earthquake clips provide secure installation in grid ceilings.
  • Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting requires a surface mounting kit (option SMK).

SPECIFICATION
  • Color Temperature: 4000k, 5000k
  • CRI 1: > 80
  • Luminaire Lumens: 4,081, 4,111
  • Luminaire Watts: 32
  • Lumens Per Watt: 127, 129
  • Input Voltage: 120-277
  • Input Current (A): 120V: 0.27, 240V: 0.13, 277V: 0.12
  • Power Factor: > 90%
  • THD2: < 20%
  • L70 Hours3: 81,000

SURFACE MOUNTING KIT
  • Optional surface mounting kit provides for installation on plaster or other hard ceilings

WARRANTY & LISTINGS
  • UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -25°C to 50°C (-13°F to 122°F).
  • DLC Premium listed.
  • Complies with FCC Part 15, part B.
  • 5-year warranty
