90W LED Full Body Highbay Fixture - DIM - 5000k - 120/277v

In stock
SKU: LEDFBH90-5K-MVDIM-V2
Regular price $120.00

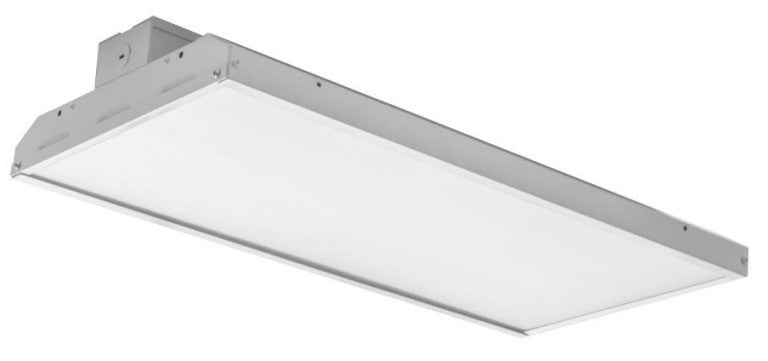

This is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, it provides durability and high performance. High-efficacy, long-life LED's provide both energy and maintenance cost savings compared to traditional, HID high bays.

Features:
  • Available in 5000k (cool white) color temperature.
  • Long-life LEDs provide 121,000 hours of operation with at least 70% of initial lumen output (L70).
  • 12,920 lumen output from 95 watts input (136 lumens per watt) is standard.
  • Universal 100-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming drivers are standard.
  • Painted steel housing.
  • Easy installation in new construction or retrofit.
  • Chain-mount kits (includes v-hooks and ⅛” thick, 1-meter long chain) are standard.
  • Options include lenses (clear & diffused), wire-guard kits surface-mounting kits, pendant-mounting kits, and cablemounting kits.

Specifications:
  • Color Temperature: 5000k
  • CRI 1: >80
  • Luminaire Lumens: 12,920
  • Luminaire Watts: 90
  • Lumens Per Watt: 136
  • Input Voltage: 120-277
  • Input Current (A): 120V: 0.79, 240V: 0.40, 277V: 0.34
  • Power Factor: >90%
  • THD3: <20%
  • L70Hours4: 121,000

Warranty & Listings:
  • cULus listed for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
  • DLC Premium approved.
  • Complies with FCC Part 15, class B.
  • Complies with IEEE C.62.41-1991, input transient protection (2.5kV).
  • 5-year warranty
